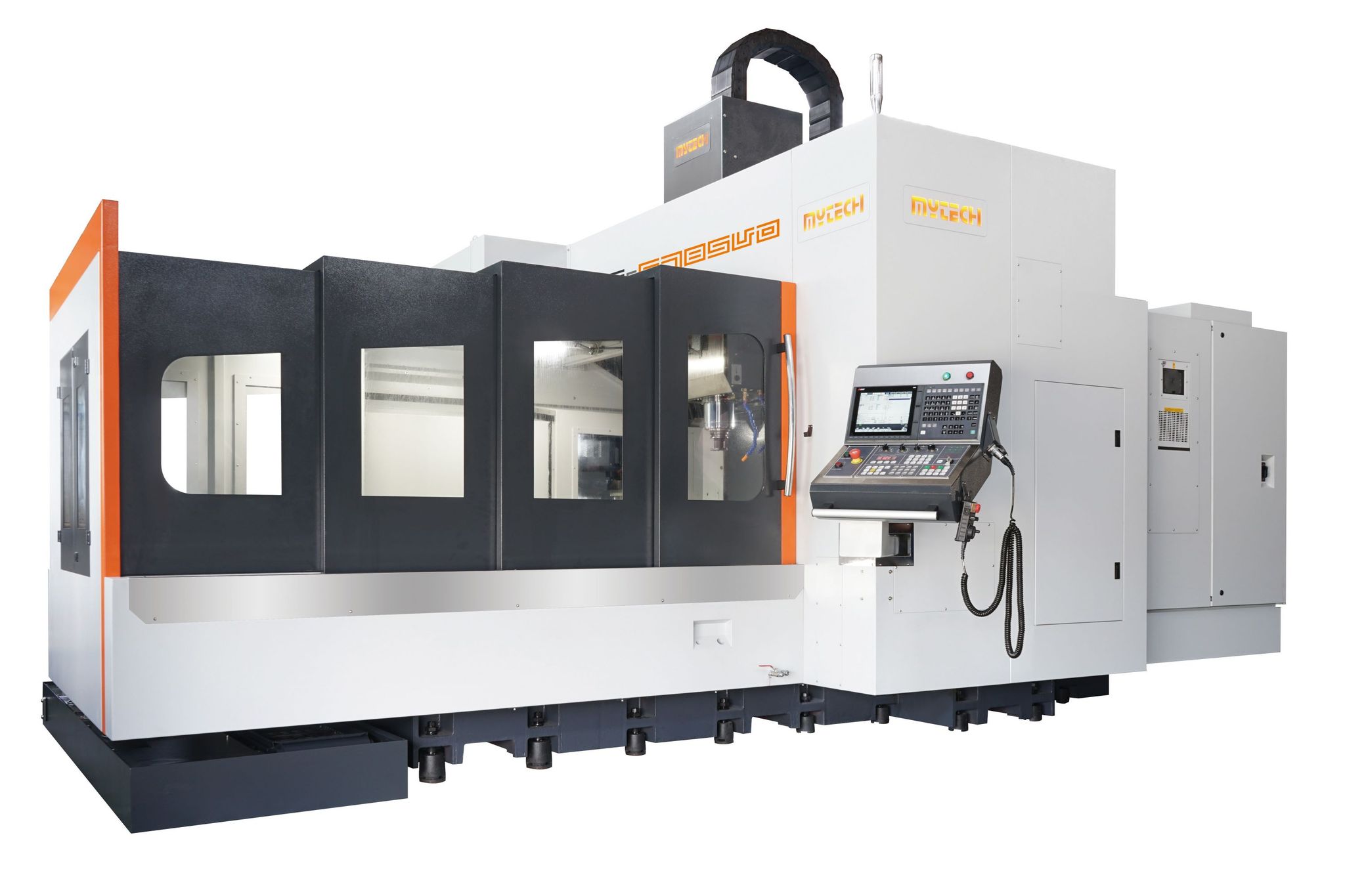

Gantry Type Machine Center


MT-5785VD (+LOGO).jpg
Gantry Type Machine Center
CF-5785VD
BT-40
X1450 / Y2150 / Z700



Inquiry
catalog


| FEATURE :
  • The pendant control box can be arbitrarily rotating swiveling. The user can set the spindle tool on machine side easily.
  • The major parts are manufactured from cast iron, strong structure and strong ability to with stand shock.
  • The entire machine structure has been analyzed and designed by SOLIDWORKS for superior rigidity and accuracy.
  • Three-Axes roller type linear quideway, improve the cutting load to ensure dynamic accuracy and long service life.
  • Linear way of Ladder type beam construction on Y axis. Extra wide span between two linear ways exhibits outstanding stability of cutting.
  • Six roller type slide blocks on Z axis, to ensure that the spindle accuracy and stable when machining cutting.
