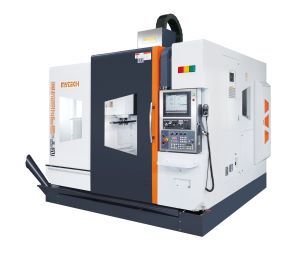

Gantry Type Machine Center

CF-5742V


BT-40
X1450 / Y1080 / Z700





Inquiry

catalog





| FEATURE :

  • The major parts are manufactured from cast iron, strong structure and strong ability to with stand shock.
  • The entire machine structure has been analyzed and designed by SOLIDWORKS for superior rigidity and accuracy.
  • Three-Axes roller type linear quideway, improve the cutting load to ensure dynamic accuracy and long service life.
  • Linear way of Ladder type beam construction on Y axis. Extra wide span between two linear ways exhibits outstanding stability of cutting.

  • Six roller type slide blocks on Z axis, to ensure that the spindle accuracy and stable when machining cutting.
  • Y axis used twin-chip auger (front-out), the chips can be easily discharged to machine outside.
